Agricultural and Industrial Film line
Lay-flat width of film from 6M to 12M, productivity can be designed according
To customer's requirements from 600kgs/hr to 1200kgs/hr
Film also can be designed as single-layer, Double-layer, Three-layer subjects to
Customer's needs
Extruder is Equipped With Screw Diameter:
Ø85mm: single extruder can produce 320kgs/hr
Ø100mm: single extruder can produce 450kgs/hr
Ø125mm: single extruder can produce 700kgs/hr
Ø150mm: single extruder can produce 1000kgs/hr
The quantity of extruders should be chosen depends on requirements of productivity
Every production line can be equipped with 3 sets extruders at most
Inner cooling type die can increase production output, make a shape in film fast, decrease non-confirmative films, and make sizes be changed easily and simply.
Furthermore, the guessting film can be opened easily, and the enlarged blown up ratio can improve effectively the film strength.
Take-up unit with function of stable drawing and non-scratch.
Guessting design is available upon request.
Winding unit can be designed as plane-winding or gusseting winding.

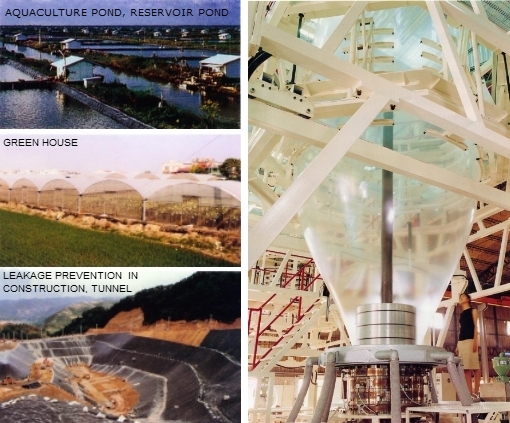

Film Application Range: Ground protection film irrigation canal tunnels reservoir green house ponds hazardous chemical waste landfills spill containment for chemical and petrochemical.
